GM-Box G1 RU

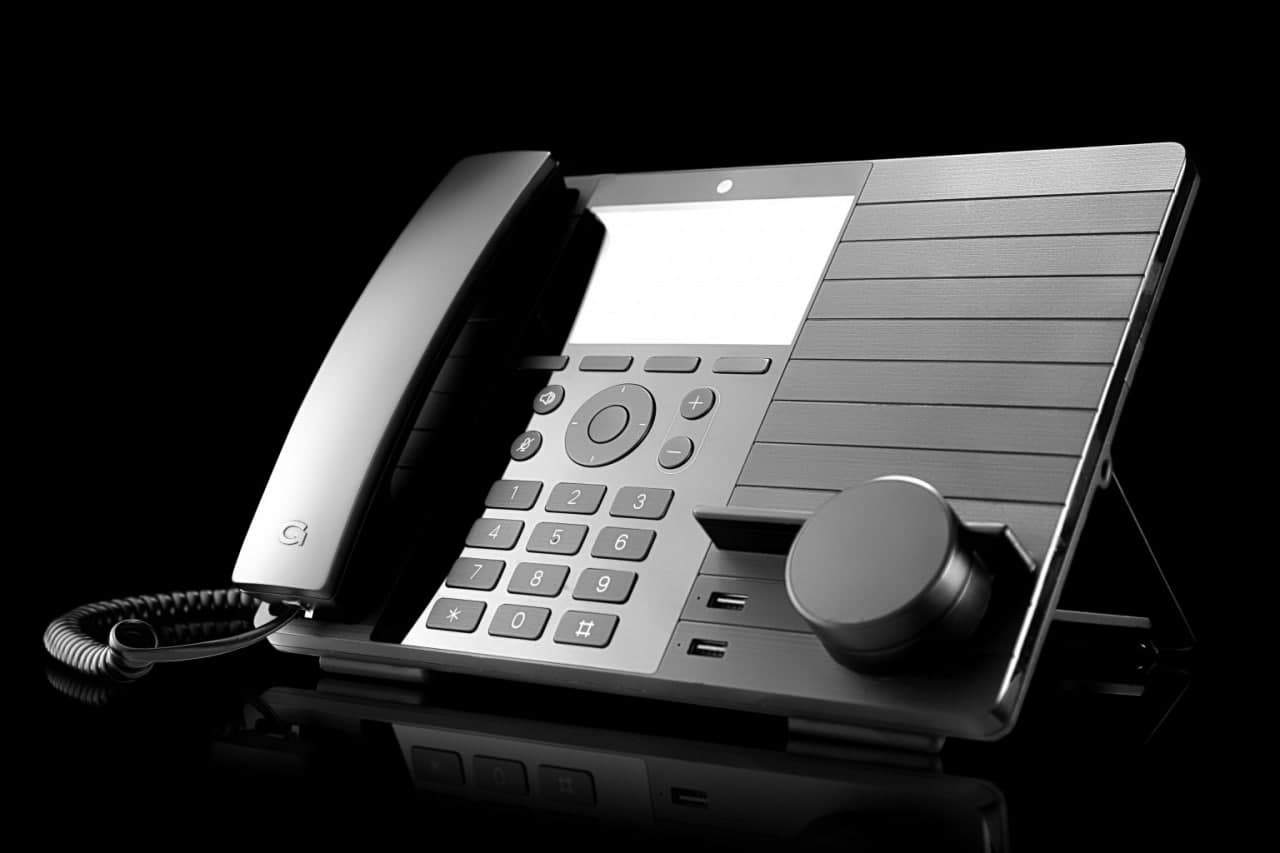

GM-Box G1 RU – is a multifunctional device providing users with secure access to enterprise information resources.

GM-Box G1 RU It combines thin client capabilities, IP video phone functions, smart-card readers, wired and wireless charging modules, Wi-Fi/BT, 4G/LTE interfaces, and integrated information protection mechanisms.



The GM-Box G1 RU dock station is available in two variants:

  • BASE
  • DUO

BASE Variant

The BASE series includes a single compute module designed for environments without physically separated network segments. Supported use cases include:

  • Access to organizational remote resources: virtual desktops (VDI), terminal servers, and direct computer connections via remote access protocols

  • User authentication in corporate services using RFID, NFC, smart cards, and tokens

  • Voice and video calls over SIP (including external headsets and cameras)

  • Smartphone charging (wired USB Type-C/Micro-USB and wireless Qi 1.2)

Base Model Range

The BASE variant comprises 18 models equipped with various features, including:



Properties



BASE Variant models



B1



B2



B3



B6



B7



B8



B3I



B7I



B8I



B1L



B2L



B3L



B6L



B7L



B8L



B3LI



B7LI



B8LI



Quad-core CPU





















Dual-core CPU





















RFI (NFC) 13.56 MHz on the main computing module











RFID 125 kHz on the main computing module
















Wireless charging module











Wi-Fi 802.11 n/ac 2,4 и 5 GHz / Bluetooth 4.2 (BLE)
on the main computing module















Built-in 3G/LTE-modem

































АIntegrated TPM





































Detailed specifications are given in the Documents section

DUO Variant



The DUO versions are implemented on the basis of two computing modules and are designed to work in an infrastructure with a physical separation of network segments, by combining the capabilities of two independent computing modules and a KVM switch within one device. Supported use cases include:

  • Access to organizational remote resources: virtual desktops (VDI), terminal servers, and direct computer connections via remote access protocols
  • User authentication in corporate services using RFID, NFC, smart cards, and tokens
  • Voice and video calls over SIP (including external headsets and cameras)
  • Simultaneous access to two separate network perimeters (internal and public)

  • Smartphone charging (wired USB Type-C/Micro-USB and wireless Qi 1.2)

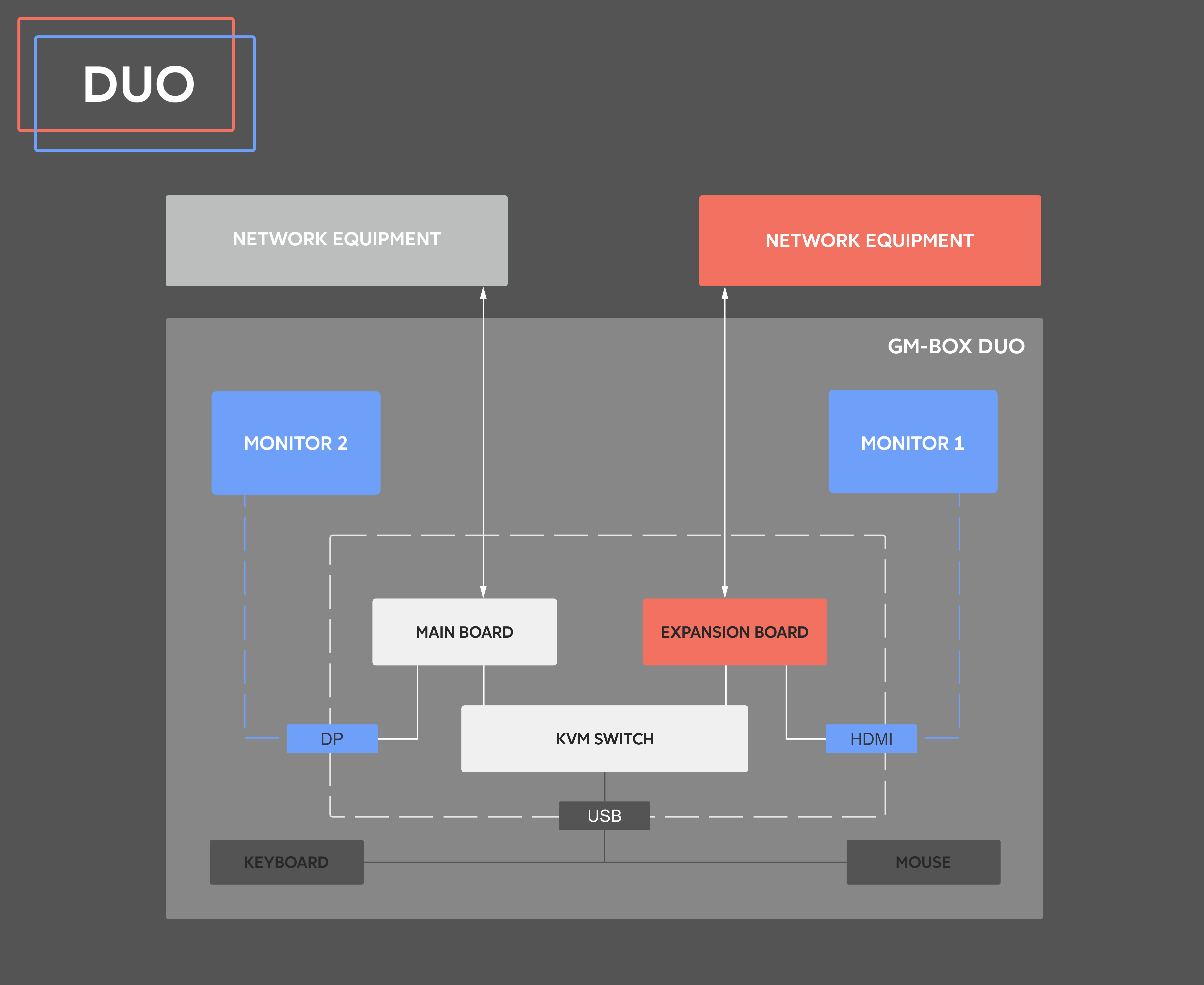

The main difference between the DUO variant and the BASE is the presence of two computing modules and the GM Smart KVM, a unique KVM switch of its own design.



GM Smart KVM switch (FSTEC Russia Certificate №4800)

The dual-channel DUO variant supports information exchange in two independent network infrastructure perimeters: a closed internal perimeter and an open public perimeter.

GM Smart KVM is a hardware-software KVM switch in the DUO variant that provides:

  • A hardware solution based on transistor-logic circuitry for separate access to information perimeters

  • Access to corporate data, voice, and video information from a single device instead of two

  • A unique algorithm for instant switching between the compute modules of the GM-Box G1 RU

DUO Model Range

The DUO variant comprises 8 models equipped with various features, including:



Properties



Модели изделия модификации DUO



D1L

D2L

D3L

D9L

D10L

D14L

D9LI

D10LI

CPU on main module



2x Core

CPU on secondary module

2x Core



RFI (NFC) 13.56 MHz on the main computing module









RFID 125 kHz on the main computing module

















Wireless charging module









Wi-Fi 802.11 n/ac 2,4 и 5 GHz / Bluetooth 4.2 (BLE)on the main computing module



на основном ВМ









Built-in 3G/LTE-modem



















Integrated TPM on main computing module

















Integrated TPM on secondary computing module













Detailed specifications are given in the Documents section

GM Core Kit

The GM Core Kit software is preinstalled (and updatable) on all GM-Box G1 RU devices (BASE and DUO). It provides:

  • Ability for sequential use of a single device by different employees in any supported mode (based on user profile settings):

    • Web mode

    • Terminal or VDI mode

    • “Showcase” mode

    • Guest mode

  • SIP-based Video & Voice over IP (VVoIP) services

  • Authentication via the GM Mobile Assistant app

  • Authentication via smart cards and tokens
  • LDAP integration (MS AD, FreeIPA, ALD Pro)

  • Operation in Ethernet, Wi-Fi, and 4G/LTE networks

  • Dual-monitor output support

  • Compatibility with VDI clients:

    • Citrix

    • Omnissa (VMware)

    • Microsoft
    • Termidesk

    • Space

    • Horizont-VS

    • Basis.Workplace

    • Iridium

  • Centralized device management and monitoring tool

  • Information security event monitoring

  • Local diagnostic tools
  • automated initial initialization device on management server

F.A.Q.

How to make an order?

To order a solution, leave a request through the order form on the website www.getmobit.ru and write to sales@getmobit.ru. To get started, we need basic information about the current level of development of the IT infrastructure in your company.

What is the price of the solution?

The cost of GM SMART SYSTEM software (reg. No. 5617 in the Russian software registry) depends on the customer's requirements for the functionality of the solution, the number and type of GM Box G1 universal docking stations supplied, the number and types of VDI in operation, the revision of the management system, and the validity period of licenses for the supplied software.



The cost of the GM SMART SYSTEM NEW GENERATION FACTORY software (reg. No. 24228 in the Russian software registry) depends on the customer's requirements for the functionality of the solution, the number of third-party devices (thin clients), the number and types of VDI in use, the revision of the management system, and the validity period of licenses for the supplied software.



The cost of the GM Smart System New Generation Client software (reg. No. 27012 in the Russian software registry) depends on the customer's requirements for the functionality of the solution, the number and type of third-party devices (thin clients), the number and types of VDI used, and the validity period of licenses for the supplied software.

The GM-Box G1 universal dock station is represented by 26 models

The cost of BABYLxONE software depends on the customer's requirements for the functionality of the solution, the number of user devices, the number and types of VDI used, and the validity period of licenses for the supplied software



A price list for Getmobit products is available upon request. Contacts for communication: sales@getmobit.ru.



Which OS of user devices are supported? ?

BABYLxONE (version 1.0) is compatible with Astra Linux 1.7 and 1.8, Ubuntu 22.04, and similar operating systems.



A price list for Getmobit products is available upon request. Contacts for communication: sales@getmobit.ru.


Can the Distribution Point be purchased separately?

GM Smart System New Generation. Distribution Point is a module for the GM SMART SYSTEM NEW GENERATION FACTORY management server and can be purchased in addition to the previously purchased management server.

A price list for Getmobit products is available upon request. Contacts for communication: sales@getmobit.ru



Can the NG Client be purchased separately?

The GM Smart System New Generation Client functions as part of the GM Smart System New Generation platform and can be purchased in addition to the previously purchased management server.

A price list for Getmobit products is available upon request. Contacts for communication: sales@getmobit.ru

Why do I need the GM Smart System platform - what problems does it solve?

The GM Smart System platform solution is created in the “all in one” concept with integrated information security features.

It changes the approach to the organization and management of Workspaces in the corporation, to make them both effective and safe.

There is a wide variety of SIP phones, thin clients, docking stations, on the basis of which you can build an integrated solution in the corporate electronics market. However, the total cost of solution building and its further support is high. Alternative solutions will not provide a high level of usability, coordination of functional components and information security, as in the Getmobit product.

Key advantages:

  • Simplification of administration of workplaces due to a new approach to organizing IT infrastructure of workplaces - “all in one” - fewer points of failure and management;
  • Work in several information circuits from one device at the same time.
  • Two-factor authentication in various options (tokens, smart cards, smart cards);
  • Authentication using a smartphone;
  • Flexible scenarios for connecting to network interfaces. GM-Box can be used as a remote workplace via WiFi or 3G, or connected to a company’s LAN via Ethernet;
  • Impersonalization of workspaces, corporate phone always “follows” the user, all his environment in one place;
  • Quick deployment - the term for preparing a new workplace is no more than 10 minutes.
Is your GM-Box device a phone or a thin client?

From the user point of view, the GM-Box device is neither a thin client, nor a phone - it is a new type of consumer electronics for the corporate segment - a docking station in the All-in-One concept. In connection with these, we call the GM-Box a universal hybrid docking station that is used to access the virtual desktop, web browser and Unified Communications services.

The principle of GM-Box operation is based on combining within one device the capabilities of several types of devices: IP phone, video phone, thin client for connecting to terminal and VDI services, a web camera, RFID and NFC\ cards readers, wire and wireless modules for a smartphone charging , a KVM switch, modules for Wi-Fi / BT, 3G / LTE modem wireless interfaces.

Can I buy one GM-Box only?



Yes, you can. But for the solution to work and bring benefits to the company, it assumes the presence of desktop virtualization (VDI-platform). The device is supplied as part of a complex project to create digital workspaces in the company.

Do you have a version for home, like a PC?



The GM Smart System solution is implemented in a thin client architecture, which assumes a virtualization platform (VDI). Desktop virtualization is used in corporations and government organizations, where a large number of workspaces and the use of virtualization is economically and organizationally beneficial. Sometimes organizations create home-based workplaces (also with virtualization technology) for their employees, but their management is centralized — that is, such workplaces are also equipped and maintained by the corporation’s IT department. We don’t have any versions for home in the sense of "independently buy 1 GM-Box device and put it at home", but we are working on product development with our partners and will tell you about the appearance of new products in the GETMOBIT line.

What applications can be deployed in the cloud? Based on what software are they based on?



To implement virtual desktops, the client can use any VDI platform: Space, Basis.Workplace, Termidesk, Omnissa Horizon, Citrix XenDesktop, Microsoft VDI, Iridium, Horizon VS

VDI technologies provide access to any applications running on Windows or Linux, including the OS of domestic companies. In addition, the technology allows for compatibility with web portals and web applications that require outdated or specialized browser versions.

What are the requirements for telephony?



In terms of Unified Communications, telephony and video conferencing services, our product has been tested for compatibility with a wide range of solutions based on SIP - Cisco, Avaya, CommuniGate Pro, Asterisk, Siemens, PROTEI, Freeswitch, VideoMost, VATS Mango, VATS Rostelecom.

How to become your partner and on what terms?



Getmobit is actively expanding its partnership and network and is looking for partners who are ready to promote the concept of “smart workspaces” and the GM SMART SYSTEM platform in the corporate sector. We provide Getmobit products on individual conditions for creating demonstration stands. The company provides training for partners and provides all the necessary information about the product and its opportunities.

For partnership and cooperation, we are waiting for proposals by e-mail: partners@getmobit.ru.

Can you send more information about the solution?



Yes of course. Write to us at sales@getmobit.ru and we will send all the necessary information and basic requirements for IT infrastructure.

What is the information security of your decision?

An integrated approach to the information security of corporate workplaces is provided on the system architecture level of GM Smart System. The platform offers variable authentication, management of security policies, monitoring and analysis of user behavior, monitoring the immutability of the device’s computing module, protection against inconsistent information retrieval, and simultaneous operation in private and public networks of information exchange.

GETMOBIT’s product portfolio includes a special version of the device - GM-Box DUO for organizations that use the separation of corporate IT infrastructure into two isolated data circuits: public and private. Work with two circuits is carried out using one set of "keyboard + mouse" and one or two monitors. The requirements to physically differentiate the work of users on the open Internet and information systems that process confidential information are prescribed today by most state organizations, medical institutions and large corporations

How and how long does solution implementation take?

From the moment “Want” to “See on the table” there are stages: solution demonstration, preparation of an testing stand (for example, implementation of a solution for 10 workplaces in one office), concept development, TCO, proposal preparation, contract, delivery and implementation, user training and support.

The speed of implementation largely depends on the procurement regulations of the customer. Infrastructure preparation may require port configuration, coordination of connections with information security services. In our experience, an implementation project takes an average of several weeks. The launch time of the new GM-Box is 10 minutes. Deployment is possible by any, even untrained user. All settings are predefined, it is enough to include the device in the power supply network, after which it will automatically connect to the main systems via any available channels.

What are the features of the GM Management Suite?



The software is implemented on a micro-service architecture using Docker containers, which allows you to build scalable and fault-tolerant solutions without limiting horizontal scaling.

Features:

· Management of user profiles through a centralized management system;

· Updating the system software on the GM-Box through a centralized management system;

· Configuring integration with VDI solutions from various manufacturers;

· Configuring integration with IP-PBX solutions compatible with SIP protocol from various manufacturers;

· Managing the availability of USB ports for the user on the GM-Box through a centralized management system;

· Management of disabling / enabling wireless interfaces (Wi-Fi / BlueTooth) through a centralized management system;

· Blocking local changes to network settings on the GM-Box through a centralized control system;

· The availability of several roles (administrator, security administrator, super administrator) that provide differentiation of access rights to the management server, with the ability to configure differentiation policy policies;

· Receiving information on the status of a particular GM-Box (the computing module of the device has its own unique number, GM-Box BASE - 1 VM, GM-Box DUO - 2 VM);

· Integration and synchronization of users with the corporate directory service (AD / LDAP)

· Viewing the event log with the GM-Box on the management server (including the syslog syslog);

· Export of logs to third-party systems using the syslog protocol (the ability to determine the format);

· Management of reboot, shutdown of GM-Box, forced end of user session.
Отправить отзыв
История
Сохранено
Сообщества

Supported server OS for GMSS NG FACTORY?



GMSS NG Factory can be installed on the server operating systems Astra Linux, RedOS, Ubuntu. The exact list of operating systems and their versions is given in the technical documentation.

Supported directory services for the platform?



GM Smart System New Generation supports integration with LDAP-compatible directory services, including FreeIPA, ALD Pro, Microsoft Active Directory.

×
